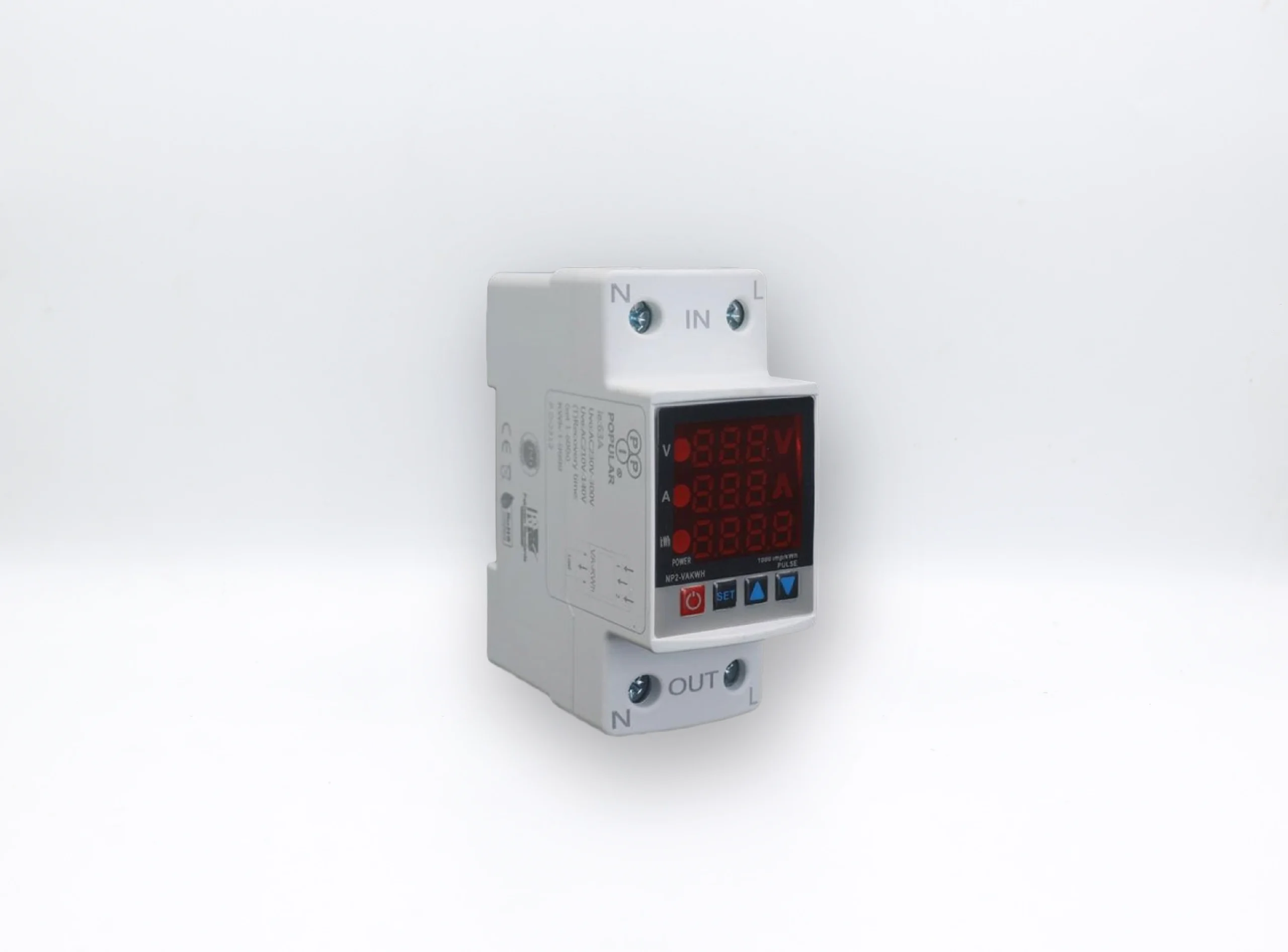

Over and Under Voltage Protection Device

Description

Specifications:

Product: PPI OUVPD
Power Supply: 220/230VAC, 50/60Hz
Max. Loading Power: 1–40A Adjustable (Default: 40A) / 1–63A Adjustable (Default: 63A)
Over-Voltage Protection Range: 240V–300V Adjustable (Default: 270V)
Under-Voltage Protection Range: 140V–200V Adjustable (Default: 170V)
Power-On Delay Time: 1s–300s Adjustable (Default: 5s)
Power Consumption: < 2W
Electrical Life: 100,000 times
Mechanical Life: 100,000 times
Installation: 35mm DIN rail

Product Details:

• Flame-Retardant Material: The shell is made of PPC flame-retardant material, offering greater safety and long-lasting durability.

• Multiple Protection: Instantly cuts off the power supply during over-voltage, under-voltage, or over-current faults to prevent equipment damage.

• Adjustable Parameters: Allows manual adjustment of protection values for over-voltage, under-voltage, and over-current — ensuring intelligent and customizable protection.

• Real-Time Display: Features an LED digital display showing current and voltage in real time, with automatic disconnection during over-current or over-voltage conditions.
