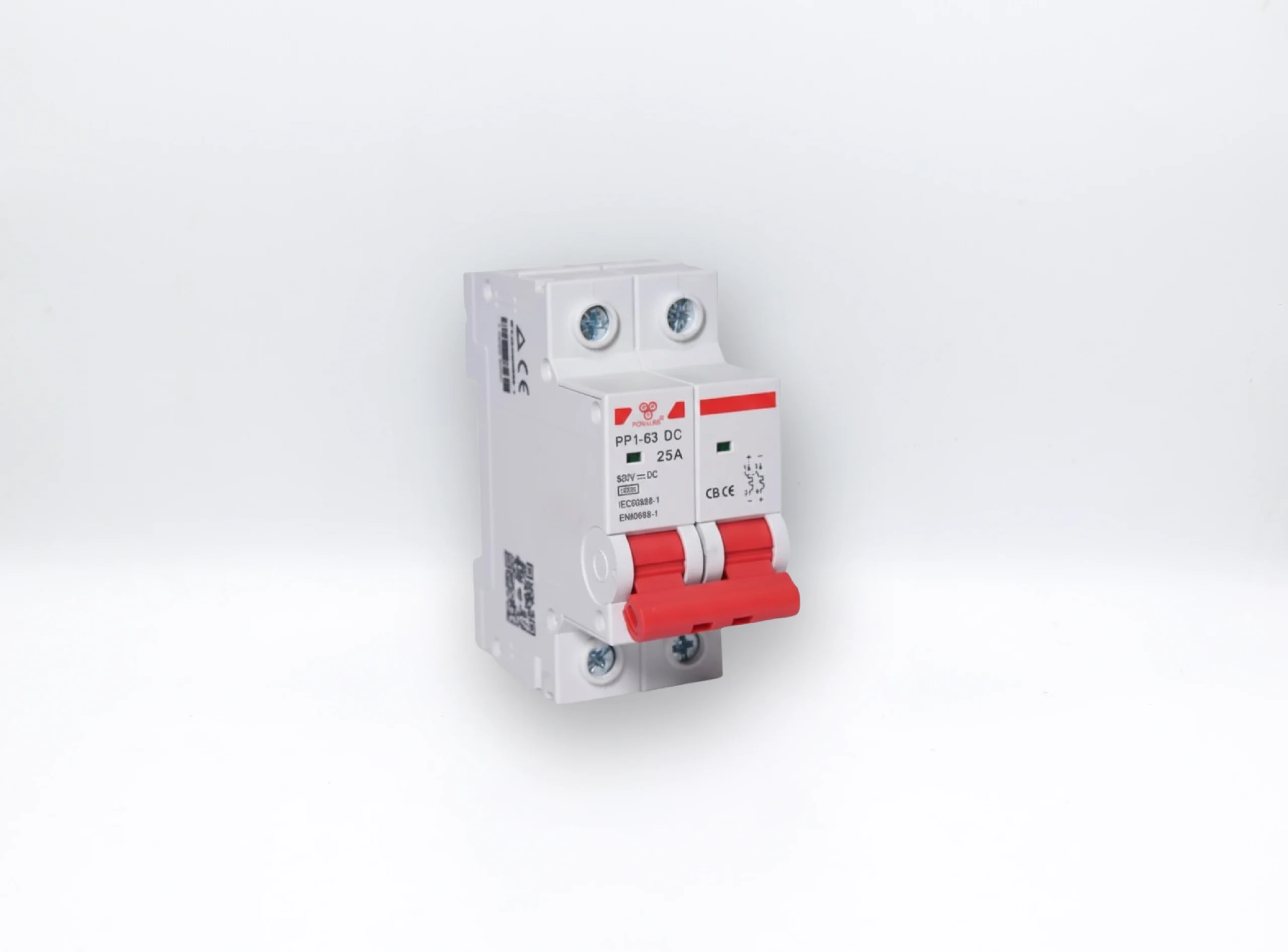

DC Miniature Circuit Breaker

Description

Key Features

• Suitable for solar power and renewable energy DC power sources

• Maximum working voltage: DC 1000V

• Rating and number of poles: 1~63A, 1/2/3/4 pole

• Rated voltage: DC 250/500/750/1000V

• Rated breaking capacity: 10kA

• Trip characteristics: B, C

Technical Specifications

• C-Curve: 12In ±20%

• Standard: Built according to IEC/EN 60947-3

• Poles: 2P

• Rated Voltage (Ue): 500V

• Insulation Voltage (Ui): 1000V

• Breaking Capacity: 6kV

• Mechanical Endurance: 10,000 trips
